VEVOR 500W Wind Turbine Generator review

VEVOR 500W Wind Turbine Generator review

Are you thinking about adding the VEVOR 500W Wind Turbine Generator, 12V Wind Turbine Kit, 5-Blade Wind Power Generator with MPPT Controller, Adjustable Windward Direction & 2.5m/s Start Wind Speed, Suitable for Home, Farm, RVs, Boats to your off-grid setup or backup power plan?

Quick impression

You’ll notice right away that this unit is aimed at practical users who want a compact, relatively powerful wind solution for small-scale needs. The 500W rating and included MPPT controller make it attractive for battery charging on boats, RVs, cabins, and small farms, but you should remember that the tower pole is not included.

Who this suits

If you want an easy-to-integrate 12V wind turbine to complement solar or to provide supplemental power in windy areas, this model is a solid candidate. You’ll particularly benefit if your site has average winds above three on the Beaufort scale (roughly 3–4 m/s or higher).

Key specifications

This section gives you the essential numbers at a glance so you can decide if the turbine matches your site and needs. Read these carefully because they determine compatibility with your battery bank, mounting, and expected performance.

Why these specs matter

You’ll want to match the turbine’s electrical and mechanical specs to your existing system: the 12V output and MPPT controller fit common battery banks, while the cut-in wind speed tells you how often the turbine will actually produce power at your site. The note about the missing tower pole is critical for installation planning and budget.

Design and build quality

You’ll appreciate the blend of functional materials and practical design choices on this turbine. The die-cast aluminum body gives a durable shell that resists corrosion, and the adjustable tail helps keep the rotor aligned with the wind.

Blades and rotor design

The 5-blade design uses reinforced fiberglass nylon blades that are waterproof and rated for extreme temperatures from -40°C to 80°C. You’ll get higher starting torque from the five blades, which helps the turbine spin up at lower wind speeds — useful if your site isn’t consistently windy.

Housing, bearings, and longevity

The turbine body is die-cast aluminum, which balances weight, strength, and corrosion resistance for long-term outdoor use. Dual bearings reduce friction and vibration, which helps the unit run more quietly and increases expected lifespan. You’ll still need to inspect these points periodically, especially if you’re near saltwater.

Generator and electrical system

The heart of this unit is a 12V three-phase AC permanent magnet synchronous generator, controlled by an MPPT microprocessor controller. That combo is designed to give you efficient charging and smart electrical management.

MPPT controller overview

The included MPPT controller optimizes voltage and current to your battery, which means you get better charging efficiency across a wider range of wind speeds. You’ll typically see more usable energy compared to a simple PWM controller, especially when wind varies.

Output behavior and practical expectations

You should expect that the turbine’s power output varies with wind speed and that the rated 500W occurs around the 12 m/s mark. At lower wind speeds, power drops rapidly (power increases roughly with the cube of wind speed), so you’ll get modest output at 3–5 m/s and much more at 8–12 m/s. The MPPT will help extract the best possible energy at each speed.

Performance and efficiency

Performance depends on your site’s wind profile, installation height, and how you integrate the turbine into your energy system. You’ll get the best results where winds are steady and you mount the turbine well above obstructions.

Cut-in and operating range

With a 2.5 m/s cut-in and useful range from 3–25 m/s, this turbine is tuned for low-to-moderate wind environments. You’ll benefit from the low cut-in if your location has frequent light winds, but you should expect maximum output only when winds approach the rated 12 m/s.

Estimated output by wind speed (approximate)

This table gives approximate expectations so you can plan battery sizing and usage. These are estimates based on typical turbine behavior and the unit’s rating; real-world output will vary by site.

Efficiency factors you can control

You’ll improve performance by mounting the turbine at a good height (reduce turbulence), keeping the site free of obstructions within several rotor diameters, and wiring with correct gauge and minimal losses. The MPPT helps, but mechanical placement is equally important.

Noise and vibration

At around 55 dB, you’ll find the turbine relatively quiet — comparable to a normal conversation heard from a few meters away. The dual bearings and balanced blades help keep vibration low.

What to expect near the turbine

You can place this unit close to living spaces more comfortably than some larger turbines, but you’ll still want to position it so that noise and periodic mechanical sounds aren’t disruptive. Boats and RV installations will likely notice less intrusion than smaller rooftop installations.

Installation and mounting considerations

You’ll need to plan your mounting carefully, since the tower pole is not included. Proper tower selection, guying, grounding, and foundation are essential for safety and performance.

Tower and site selection

Choose a tower that matches the rotor diameter and wind loads — a minimum height that places the turbine above local turbulence (generally several rotor diameters above nearby obstacles) will vastly improve output. Make sure the tower and mount can handle gust loads up to 25 m/s if your area experiences strong winds.

Electrical hookup and wiring

You’ll wire the turbine through the MPPT controller to a 12V battery bank. Use appropriately sized wire to minimize voltage drop over distance; for longer runs (over 10–20 meters), increase wire gauge. Include inline fuses and a proper disconnect switch so you can service the turbine safely.

Safety and grounding

You’ll ground the system to handle lightning and stray currents using local code requirements. Also consider lightning arrestors and surge protection devices at the controller and battery terminals. If you’re uncertain, you should have a licensed electrician sign off on the installation.

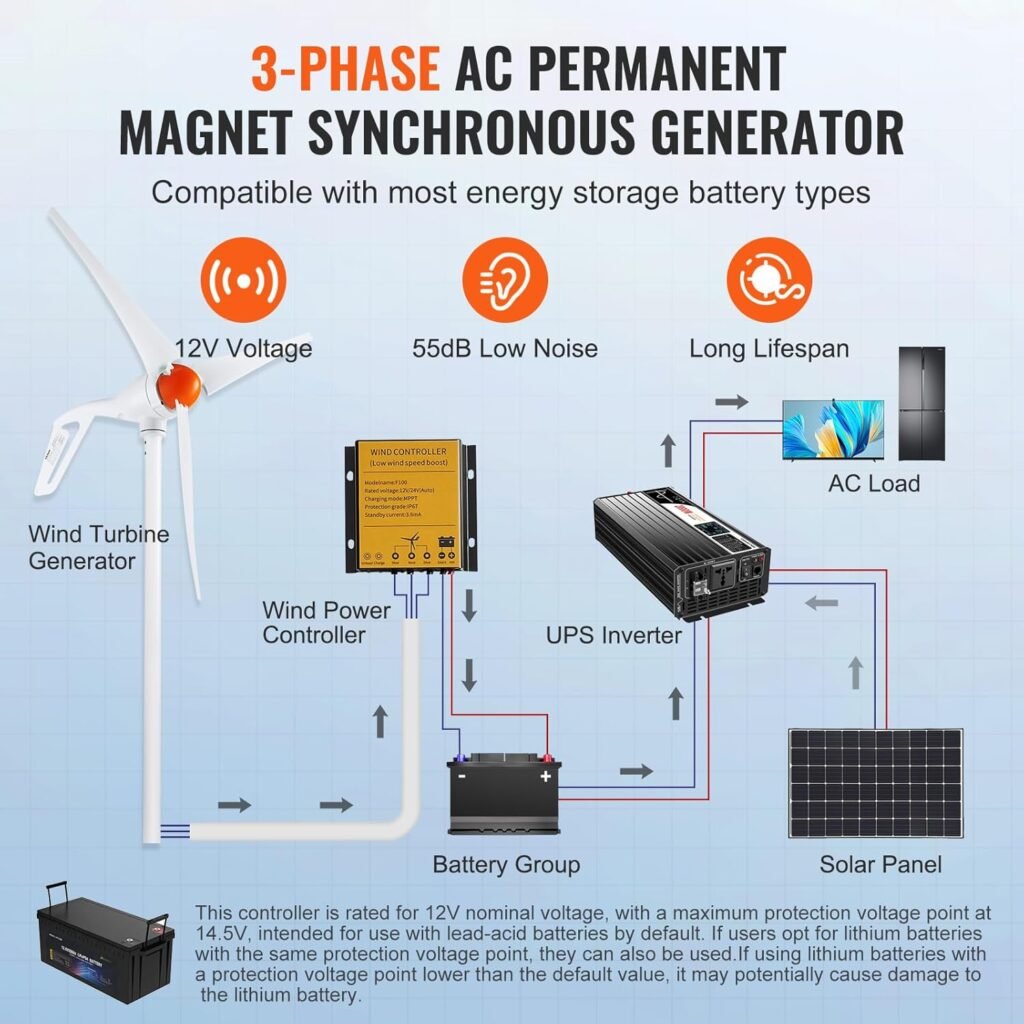

Battery charging and system integration

This turbine is designed for 12V battery systems and includes an MPPT controller to optimize charging. How you size and manage your battery bank affects system reliability and lifespan.

Battery sizing guidance

You’ll want a battery bank sized to absorb intermittent wind energy; for typical setups, a battery capacity of several times your daily energy consumption (in Ah at 12V) reduces cycling depth and wear. For example, if you expect 500 Wh/day from wind, a 12V 200 Ah battery (~2400 Wh usable at 50% depth) gives you several days of buffer.

Combining with solar and inverters

You’ll get the best reliability if you pair the turbine with solar and a proper inverter for AC loads. The MPPT controller will handle wind charging while a hybrid charge controller or system manager can coordinate wind and solar inputs to the same battery bank.

Charging strategy and controller settings

You’ll configure the MPPT controller charging parameters for your battery chemistry (lead-acid, AGM, lithium). Make sure charge voltages and float/absorption times are matched to battery manufacturer recommendations. The product page reportedly includes graphical and textual guides; you should consult them for detailed settings.

Maintenance and durability

You’ll find the turbine relatively low-maintenance, but periodic inspection will ensure long life and safety. The materials used — fiberglass nylon blades, die-cast aluminum body, sealed bearings — are selected to reduce upkeep.

Regular checks and schedule

Inspect bolts, electrical connections, and blade condition every 6 months or after any severe storm. Check for corrosion on fasteners and connectors, and verify the tail alignment and yaw mechanism for free movement. Replace or service bearings if you detect unusual vibration or noise.

Winter and extreme weather tips

You’ll need to secure the system for extreme conditions if you face heavy icing or hurricanes. Ice buildup can unbalance blades and increase structural loads. If your site experiences tropical storms, consider lowering the turbine or using a mechanical braking/furling strategy if available.

Troubleshooting common issues

When something goes wrong, quick checks often solve most problems. You’ll avoid prolonged downtime by following a basic diagnostic flow.

No start or low output

If the turbine doesn’t start, check the mechanical free rotation first: ensure blades spin freely and there’s no mechanical binding. Check the wiring and fuses, battery state (fully charged batteries can prevent charging current), and controller error codes. If the battery is already at float, the MPPT will limit current.

Excess noise or vibration

If vibration increases, inspect blades for chips or damage and ensure bolts are tight. Worn bearings or a misaligned tail can also cause noise; replace bearings if necessary.

Overcharging or erratic charging

If the controller shows erratic behavior, verify the controller settings match your battery type and health. Ensure temperature compensation sensors (if used) are connected correctly. Consider adding a dump load or using a battery management system for aggressive wind regimes.

Use cases and real-world fit

You’ll find multiple practical applications for this turbine, but understanding the match between expected output and your needs is essential.

Home and cabin backup

This unit can supplement small home energy needs or serve a cabin with limited loads. You’ll use it best for battery charging to run lights, small appliances, and electronics in combination with energy efficiency measures and other generation sources.

Farm and remote equipment

For farms, you’ll appreciate a turbine that can charge pumps, sensors, and low-power systems. You’ll want to size the battery and perhaps combine multiple units for larger loads.

RVs and boats

You’ll like the relatively low noise and low cut-in speed for marine and RV use. For boats, corrosion resistance is important; you should apply additional marine-grade protections for connectors and exposed metal over time.

Pros and cons

This straightforward list helps you quickly weigh whether the VEVOR 500W Wind Turbine matches your priorities.

Pros

• Low cut-in wind speed (2.5 m/s) gives useful output in light winds.
• MPPT controller included for efficient charging and management.
• 5-blade design provides high starting torque and stable low-speed performance.
• Durable materials: reinforced fiberglass nylon blades, die-cast aluminum body, and dual bearings.
• Quiet operation (~55 dB), suitable for installations near living areas.

Cons

• Tower pole not included — adds cost and planning for mounting.
• 500W rating is useful, but real-world output is highly wind-dependent.
• Five blades favor starting torque but typically sacrifice some high-wind aerodynamic efficiency compared to 3-blade systems.
• You’ll need to ensure proper grounding and lightning protection in exposed locations.

Comparison to similar turbines

If you’re comparing this unit to others in the 400–600W class, a few differences stand out that will affect your decision.

3-blade vs 5-blade tradeoffs

You’ll find 3-blade turbines tend to have higher top-end efficiency and smoother rotation at higher tip speeds, while this 5-blade model gives higher torque at lower speeds and starts earlier. If your site is light-and-variable wind, you’ll likely prefer the 5-blade design here.

Controller and system integration

Not all small turbines come with an MPPT controller; the included MPPT here is a significant value-add if you don’t already have a wind charge controller. You’ll save on integration time and complexity compared to buying a turbine without a controller.

Practical buying checklist

Before you commit, check these items so you don’t run into surprises during installation.

• Verify your average wind speed at mounting height (ideally >3 m/s).
• Plan for a tower and foundation — tower not included.
• Ensure compatibility with your battery bank and inverter system.
• Confirm local codes for mounting height, permits, and grounding.
• Budget for wiring, disconnects, fuses, and surge protection.

Final verdict

If you want a single-unit wind solution for supplemental charging in a 12V system and you have a moderately windy site, this VEVOR 500W Wind Turbine Generator, 12V Wind Turbine Kit, 5-Blade Wind Power Generator with MPPT Controller, Adjustable Windward Direction & 2.5m/s Start Wind Speed, Suitable for Home, Farm, RVs, Boats gives you a balanced mix of durability, low-speed performance, and intelligent charging. You’ll need to plan for tower mounting and system integration, but the included MPPT and robust construction make it a practical choice for many small-scale off-grid applications.

Frequently asked questions (FAQs)

You’ll likely have a few practical questions before buying or installing; these quick answers address common concerns.

Do I need a special tower?

You’ll need a tower rated for the turbine’s loads and local wind conditions; the product does not include a tower pole. Consider a tilt-down tower for easier maintenance.

Can I use this with a 24V battery bank?

The unit is specified for 12V systems. You’ll need a different controller or a DC-DC step-up solution to integrate into a 24V bank; consult the manufacturer or an electrical pro before modifying.

Is the MPPT controller included able to handle combined wind and solar inputs?

Some MPPT controllers support hybrid inputs, but you should confirm the controller’s specs. If you plan hybrid charging, ensure the charge controller and system wiring can accept multiple inputs safely.

How long is expected lifetime?

With proper installation and maintenance, you’ll likely see many years of service from the reinforced blades, sealed bearings, and aluminum body. Exact lifetime depends on wind intensity, maintenance, and environmental exposure.

If you want, I can help you estimate how much energy this turbine might produce at your specific site if you tell me your average wind speeds, typical mounting height, and what loads you intend to run.
