200W 12V Solar Battery Charger Foldable Panel review

Have you checked whether this 200 watt 12V solar battery charger has everything you need before your next trip?

First impressions

You’ll notice the panel looks and feels like a serious piece of kit right out of the bag. The foldable design, tempered glass surface, and the included storage bag make it clear the unit was built with outdoor use and transport in mind.

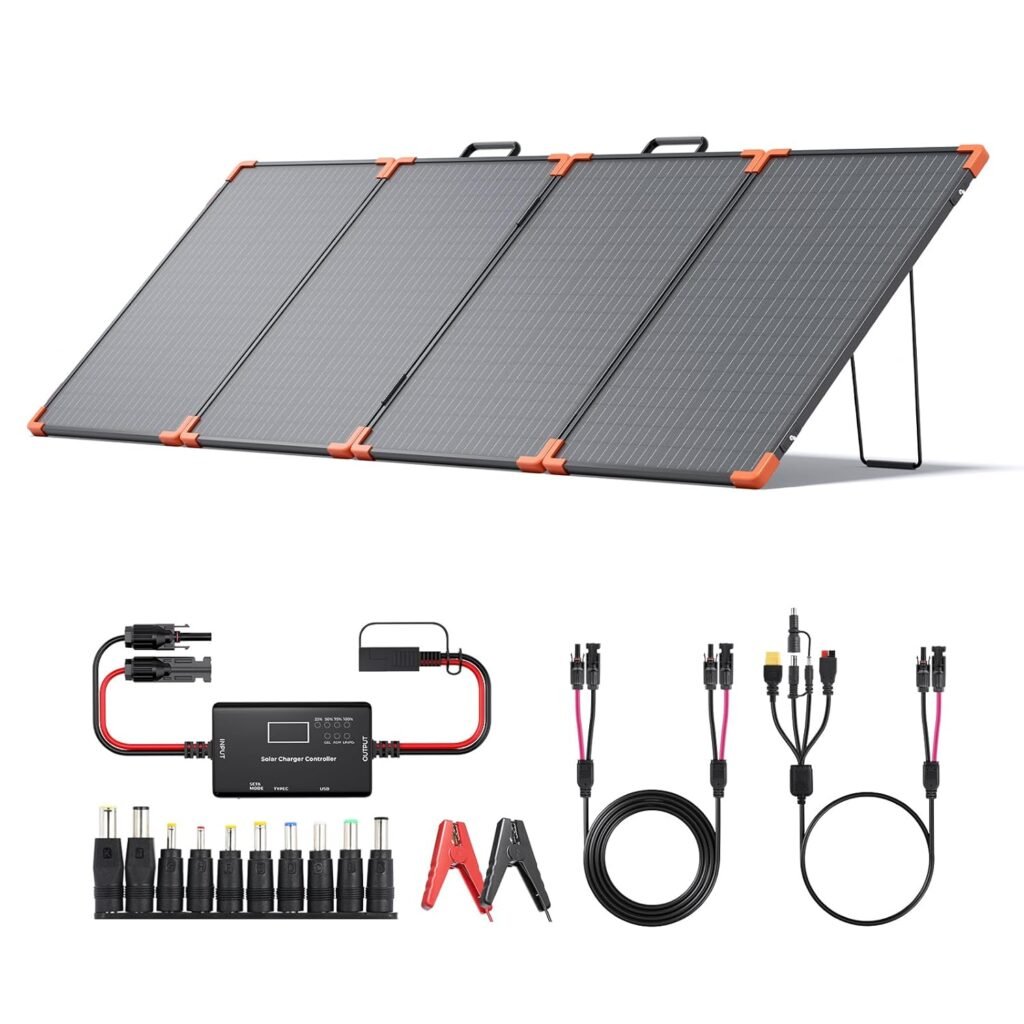

Unboxing and accessories

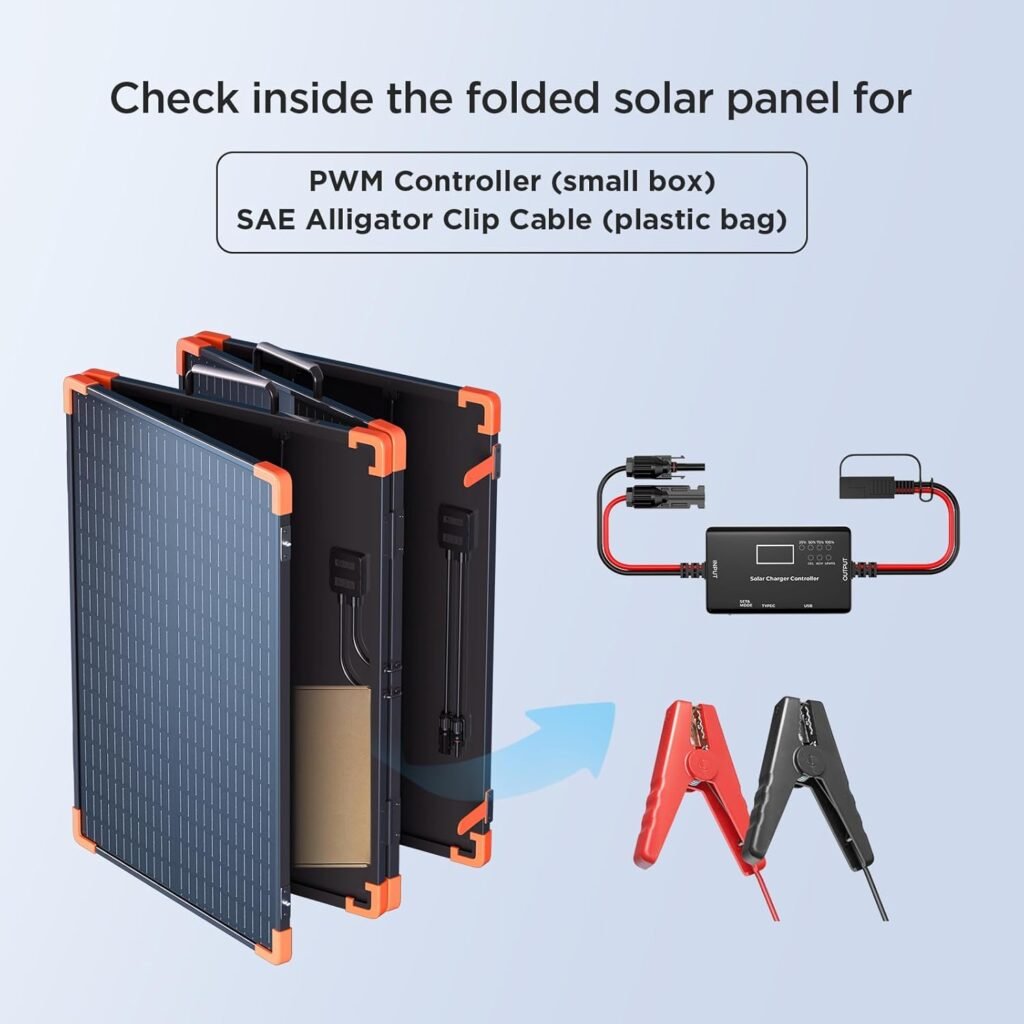

When you open the package, make sure you look between the folded panels — the PWM controller and the SAE-Alligator Clip Cable are packed inside the gap to prevent damage during shipping. You also get a 5-in-1 solar cable (XT-60, Anderson, DC5521, DC7909, DC8020), a 10-in-1 DC adapter, the PWM controller, a storage bag, and a user manual, so you won’t be left scrambling for connectors.

Build and design

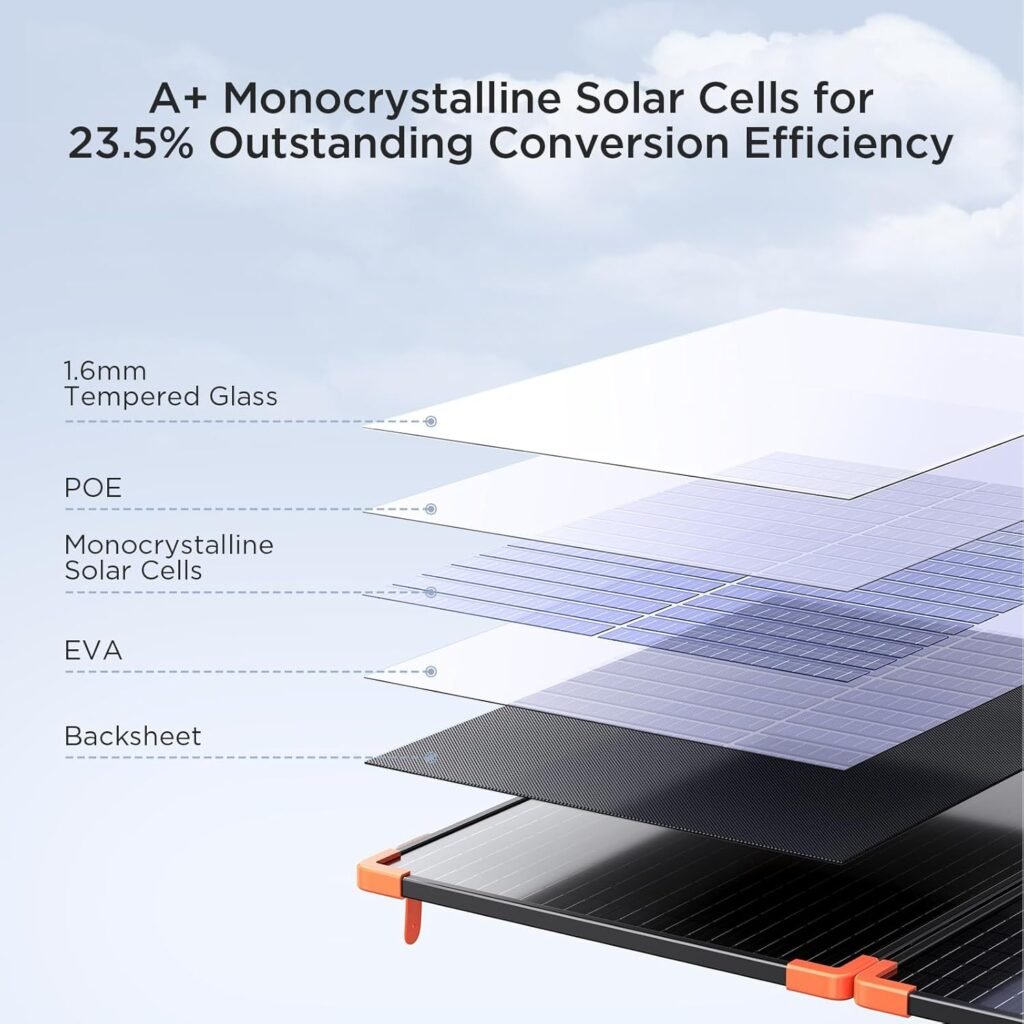

The panel uses A+ monocrystalline cells with a 1.6mm tempered glass top rather than ETFE or PET, and that gives it a solid, premium feel. The foldable chassis and four adjustable kickstands make setup intuitive, and the tempered glass promises better scratch resistance and long-term durability than many thin-film foldables.

Portability and setup

At about 20.6 lbs folded and with dimensions of 27 × 17.9 × 3.54 inches folded, it’s easy for one person to carry and store in an RV or car trunk. The included carrying bag keeps everything compact and easy to deploy when you arrive at camp.

Specification breakdown

Here’s a compact table to help you scan the key specs quickly so you can match the panel to your gear.

Performance and efficiency

You should expect high cell efficiency thanks to the A+ grade monocrystalline cells at 23.5%, which translates into more power per square foot compared with lower-grade panels. That higher efficiency particularly helps in less-than-ideal light or when you have limited setup space.

Solar cell technology and output

The use of A+ monocrystalline cells gives you a stronger conversion ratio, so under bright sun you’ll get closer to the panel’s rated 200W output than you would from lower-efficiency panels. The tempered glass and solid build help keep the output stable over time by reducing micro-damage and surface degradation.

Real-world power generation estimates

In real-world conditions you won’t always see 200W continuously; expect peak output during midday sun and lower production during morning, late afternoon, or cloudy conditions. In a practical scenario, if you get 5–6 peak sun hours, you can expect roughly 1,000–1,200 Wh of energy in a good day (200 W × 5–6 hours), though shading, angle, temperature, and controller losses will reduce that. Use these estimates to plan charging times for batteries and power stations.

Charging calculations for common situations

If you’re charging a 100 Ah 12V lead-acid battery (about 1,200 Wh usable at 50% depth of discharge), the panel could reasonably replace what you use in one good sunny day. If you’re charging a 500 Wh portable power station, expect it to take under a full day of good sun to bring it fully up depending on how PWM handles voltage matching and losses. Keep in mind the PWM controller will limit the panel’s ability to extract maximum power compared to MPPT controllers, so charging times will be longer than MPPT-optimized setups.

PWM controller: what it does and limitations

The included 20A PWM charge controller provides necessary safety and basic charge regulation for 12V battery systems. It’s packed with useful protections but also imposes efficiency limits vs MPPT controllers.

Protection features you’ll get

The controller includes overcharge protection, reverse charging protection, short-circuit protection, reverse polarity protection, and over-temperature protection — so you can connect batteries with confidence for everyday charging and battery maintenance. These protections are valuable when you’re charging directly from the panel to a battery in remote situations.

PWM vs MPPT — what you should know

PWM (Pulse Width Modulation) controllers are reliable and simple, but they don’t harvest as much power as MPPT (Maximum Power Point Tracking) in many conditions — especially when panel voltage and battery voltage differ significantly, or during cooler temperatures where panel voltage is higher. If you plan to maximize daily energy harvest or charge large battery banks faster, you might consider pairing the panel with a separate MPPT controller (not included).

Waterproof caution for the controller

The panel has an IP68 waterproof rating on the surface, but the PWM controller is not waterproof and should not be immersed or exposed to prolonged rain. You’ll want to keep the controller in a dry location or inside a waterproof box when the weather turns.

Connectors and compatibility

You won’t be constrained to one brand of power station because the panel includes a versatile 5-in-1 cable and multiple adapters. That versatility makes it a reliable companion for most portable power stations and 12V battery setups.

What the 5-in-1 cable allows you to do

The 5-in-1 cable offers XT-60, Anderson, DC5521, DC7909, and DC8020 connectors to match many common inputs on power stations and portable inverters. This means you likely won’t need to buy extra adapters to connect to many mainstream brands.

Direct battery charging options

If you need to charge a 12V battery directly, the kit includes an SAE-Alligator clip cable and the PWM controller to manage charging safely. Remember to check battery chemistry and manufacturer guidance before direct charging, as the included controller is designed for typical 12V lead-acid and similar systems.

Durability and weather resistance

The panel’s 1.6mm tempered glass and IP68 rating suggest solid resistance to the elements, but there are practical precautions you should follow for long-term reliability.

Tempered glass versus ETFE/PET materials

Tempered glass offers better scratch resistance, hardness, and impact resistance compared to thin film coverings like ETFE or PET, so the surface will better resist scuffs from branches, sand, and rough handling. That makes it a better option if you plan to place the panel on a rocky ground or in busy outdoor use.

IP68 rating — what it means for you

IP68 indicates the panel’s surface assembly can resist dust and water ingress under specific conditions, but the manufacturer explicitly warns against soaking the panel in water. The PWM controller, however, is not waterproof — so you must shield the controller from rain and moisture to avoid damage.

Hardware durability — kickstands and hinges

The four kickstands make it stable if you set it up on flat or gently sloped surfaces, and the foldable hinge design is meant to withstand repeated opening and closing. Still, treat the hinges and kickstand joints with care to avoid bending or loosening over time.

Setup and everyday use

You’ll find setup and operation are straightforward if you follow a few practical tips to optimize energy capture and ensure longevity.

Positioning and angle

Unfold the panel and adjust the kickstands so the panel faces the sun at roughly a 90-degree angle for maximum midday output, then tweak as the sun moves or if you plan to keep the panel deployed all day. In higher latitudes or winter months, increase the tilt angle to catch lower-angle sunlight.

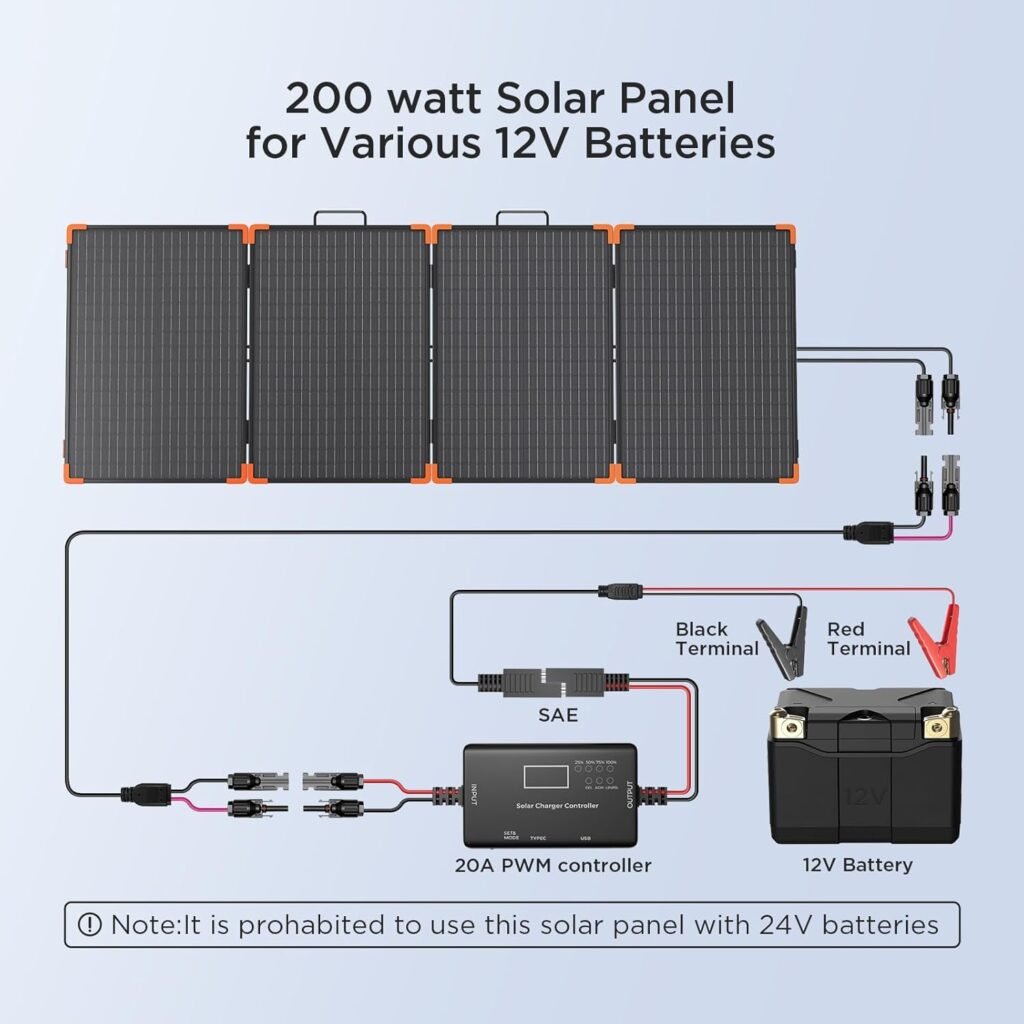

Connecting to batteries and power stations

Use the included 5-in-1 cable to match your power station input or use the SAE-Alligator clips to connect to a 12V battery via the PWM controller. Double-check polarity before connecting and follow the user manual, as incorrect connections can trip protections or damage components.

Tips to maximize output

Keep the panel clean of dust and debris, avoid partial shading (which can disproportionately reduce output), and orient the panel to receive direct sunlight during peak sun hours. If you want faster charging, consider pairing the panel with an MPPT controller (sold separately) to improve harvesting efficiency, especially when conditions vary.

Pros and cons

You’ll appreciate the clear strengths of this product, but you should also be aware of limitations before purchasing.

Key strengths

• High-efficiency A+ monocrystalline cells (23.5%) produce more energy per area.
• Tempered glass surface increases scratch and impact resistance compared to PET/ETFE.
• Foldable, portable design with a carrying bag and four adjustable kickstands for convenience.
• Wide connector compatibility via the 5-in-1 cable and included adapters.
• PWM controller with multiple protections and SAE-Alligator clips for direct battery charging.
• IP68-rated panel surface for improved outdoor durability.
• 5-year warranty and 24/7 customer service for peace of mind.

Limitations and practical considerations

• The included PWM controller limits charging efficiency compared with MPPT controllers, especially in non-ideal conditions.
• The PWM controller is not waterproof — you must protect it from rain and moisture.
• At 20.6 lbs, it’s portable but not ultralight; carrying it long distances on foot could be tiring.
• IP68 doesn’t mean you should submerge the panel — manufacturer notes warn against soaking it.
• Foldable hinges and kickstands add convenience but may require careful handling to avoid wear.

Who should consider this panel?

If you need dependable, portable solar that connects directly to 12V batteries or a range of power stations, this pack is a great fit. The high-efficiency cells make it particularly attractive if you have limited setup area — you’ll extract more energy from a smaller footprint.

Best use cases

This panel is ideal for RVers, campers, weekenders, and anyone wanting a portable solar solution for emergency backup during power outages or hurricanes. It’s also a good match for people who need simple, on-the-go charging for power stations and 12V batteries with minimal adapter headaches.

Who should consider alternatives

If you need the absolute fastest charging or plan to harvest variable sunlight across seasons, you may want to pair the panel with a separate MPPT controller or choose a package that includes MPPT out of the box. Hikers and ultralight backpackers may prefer lighter thin-film or smaller foldable panels for weight savings.

Maintenance and care

Routine care will keep the panel performing well and extend its service life. You’ll want to follow a few simple habits.

Cleaning and storage

Clean the tempered glass surface occasionally with fresh water and a soft cloth to remove dust, bird droppings, and salt if you’re near the coast. Store the panel folded in the included bag when not in use to protect the cells and hinges.

Rain and water precautions

Although the panel surface is highly water-resistant, avoid submerging it or leaving the controller exposed to rain. Keep the PWM controller in a sealed box or inside your RV/vehicle when bad weather is forecast to prevent damage.

Troubleshooting and FAQ

You’ll run into only a few common issues, and most of them are easy to diagnose and fix. Here are typical questions with practical answers.

Q: Why is my panel producing less than the rated 200W?

A: Panel output depends on sunlight intensity, angle, shading, temperature, and the controller used. PWM controllers can limit effective power transfer; cloudy skies, improper tilt, or partial shading will reduce output. Reposition the panel, clean the surface, and ensure the controller and connectors are properly attached.

Q: Can I leave the panel outside in all weather?

A: The panel’s surface is IP68-rated, but you should not soak it or submerge it in water. The PWM controller is not waterproof, so keep it dry. For prolonged exposure to storms, pack the controller and secure the panel.

Q: Is the included PWM controller compatible with lithium batteries?

A: The included controller is designed for basic 12V systems; you should verify settings for specific battery chemistries and follow battery manufacturer recommendations. Some lithium batteries require specific charging profiles, and a dedicated lithium-compatible MPPT controller may be preferable.

Q: Can I chain multiple panels together?

A: The panel supports standard DC outputs; you can parallel or series connect panels if you understand voltage and current implications and use appropriate cabling and controllers. For larger arrays, MPPT controllers and professional wiring are recommended for safety and efficiency.

Q: What if the package seems to be missing accessories?

A: Check between the folded panels as the PWM controller and SAE-Alligator Clip Cable are tucked into the middle layer. If you still can’t find items, contact the vendor’s customer service — the product includes 5-year warranty support and 24/7 service.

Comparison with similar 200W foldable panels

You’ll notice this unit stacks well against many foldable 200W competitors because of its high cell efficiency and tempered glass build, but there are trade-offs.

Strengths vs typical foldables

Compared to many foldables that use PET/ETFE coverings, the tempered glass and 23.5% cells give you better durability and energy density. The accessory set is generous, with multiple connector options out of the box, saving you from buying extra adapters.

Where others might outperform it

Some competing packages include an MPPT controller, which will harvest more energy and charge batteries faster than this kit’s included PWM controller. If your use case prioritizes maximum daily energy capture or you’re charging large banked systems regularly, look for MPPT-equipped alternatives.

Practical scenarios and time estimates

You’ll find the panel meets common everyday demands. Here are examples to help you plan.

Charging a 12V lead-acid battery

If you’re topping up a partially discharged 100 Ah (12V) battery, the panel can replace a large portion of what you used in a single sunny day, but PWM limitations and charging efficiency will slow the process. Expect full recharge cycles to take a couple of days in non-ideal conditions or more practical time if you’re attempting a deep charge.

Powering a portable power station

For a 500–1,000 Wh power station, expect a full recharge in one to two days of solid sun depending on the station’s maximum input and the controller’s voltage matching. Again, MPPT-equipped systems will be faster; with PWM expect modestly longer charging times.

Emergency backup scenarios

For hurricane or outage preparedness, this panel offers a straightforward way to maintain 12V batteries and keep small essential electronics running. The included protections on the PWM controller reduce risk while charging and maintain battery health during long-term trickle charging.

Final verdict

You’ll find the 200 watt 12V Solar Battery Charger with 20A PWM Controller to be a balanced, practical choice for campers, RV owners, and anyone needing a portable solar power solution with broad connector compatibility and solid build quality. Its high-efficiency cells, tempered glass surface, and thoughtful accessory set make it a strong value proposition, especially if you prioritize reliability, durability, and out-of-the-box compatibility.

If you want the fastest possible charging under varied conditions, plan to pair it with an MPPT controller. If you want a robust, user-friendly kit that safely charges 12V batteries and most portable power stations without extra purchases, this panel is a smart option. With proper care and sensible use, it will serve as a dependable part of your portable power setup for years to come.
