Callsun 200W Flexible Solar Panel review

What would it mean for your off-grid setup if you could add a lightweight, flexible 200W solar panel that conforms to curved roofs and stands up to harsh weather?

Overview of the 200W Flexible Solar Panel, Thin Lightweight 2PCS 100 Watt 12V/24V RV Solar Panel Kit, Callsun 23% High Efficiency 182 PERC IP68 Waterproof Solar Panels for Offgrid RV Living Campervans Boat (Black)

You’re looking at a flexible solar solution built for RVs, campervans, boats, and other off-grid applications where weight and roof curvature matter. The Callsun kit gives you two 100W panels that together deliver 200W, using high-efficiency 182 PERC cells and a robust ETFE cover designed to last.

Key Specifications

This section presents the core technical numbers so you can quickly see if this panel fits your system requirements. Below is a compact breakdown of the most relevant specs and performance indicators.

You can use this table to match the panel’s electrical and mechanical specs to your camper or boat roof, and verify compatibility with your charge controller and battery bank.

Design and Build Quality

The Callsun flexible panels aim to bridge the gap between rigid glass panels and traditional flex panels by combining advanced cell tech with a tough polymer surface. You’ll notice a streamlined, low-profile look in black that blends well on many vehicles while prioritizing practical durability.

You can expect attention to details like extra busbars to reduce resistance and an ETFE surface to reduce wear from UV, sand and abrasion compared with cheaper laminate constructions.

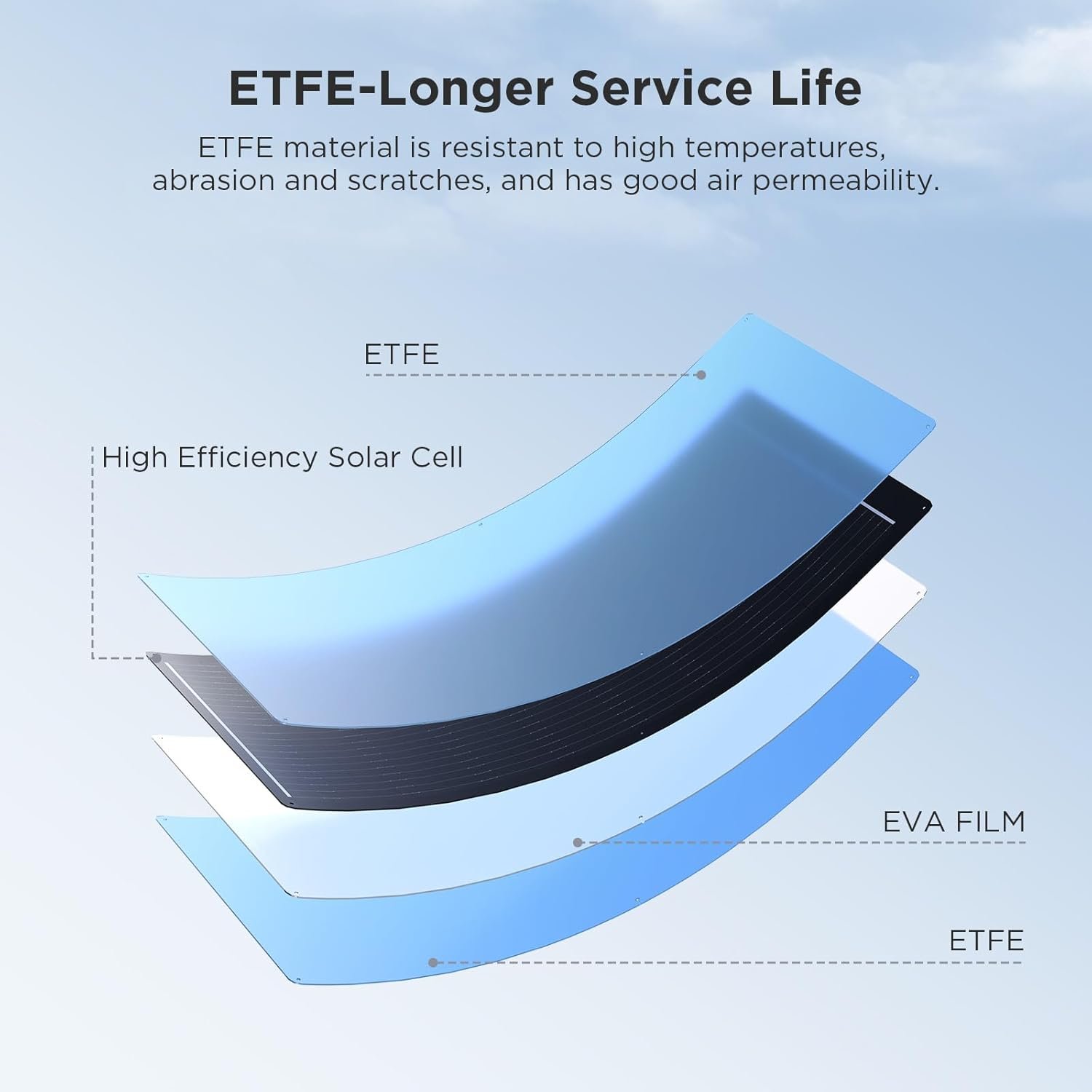

ETFE Material Benefits

ETFE (ethylene tetrafluoroethylene) is a robust polymer that improves longevity and resistance to environmental damage. You’ll get better abrasion resistance, less delamination risk, and self-cleaning characteristics that help maintain output with minimal maintenance.

That means the panel should retain its visual and electrical performance for longer compared with typical thin-film laminates, especially in abrasive outdoor conditions like sandy beaches or dusty roads.

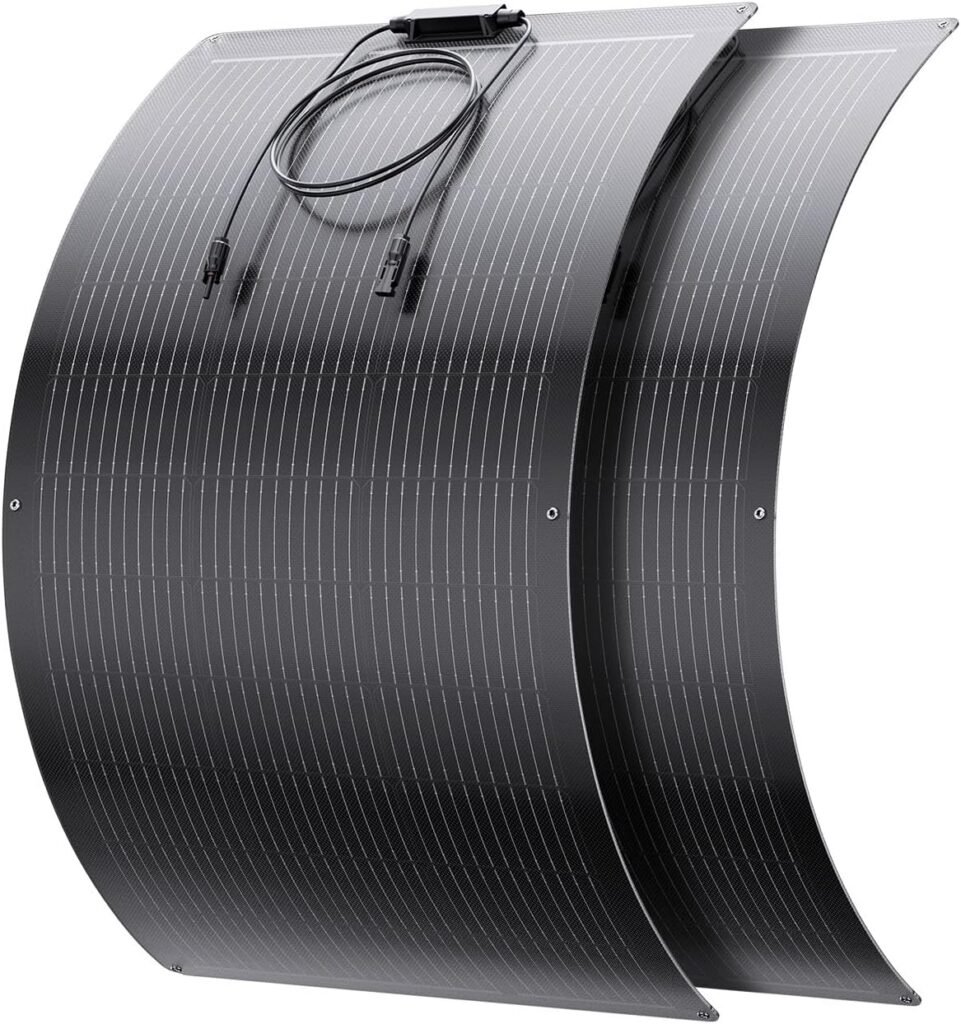

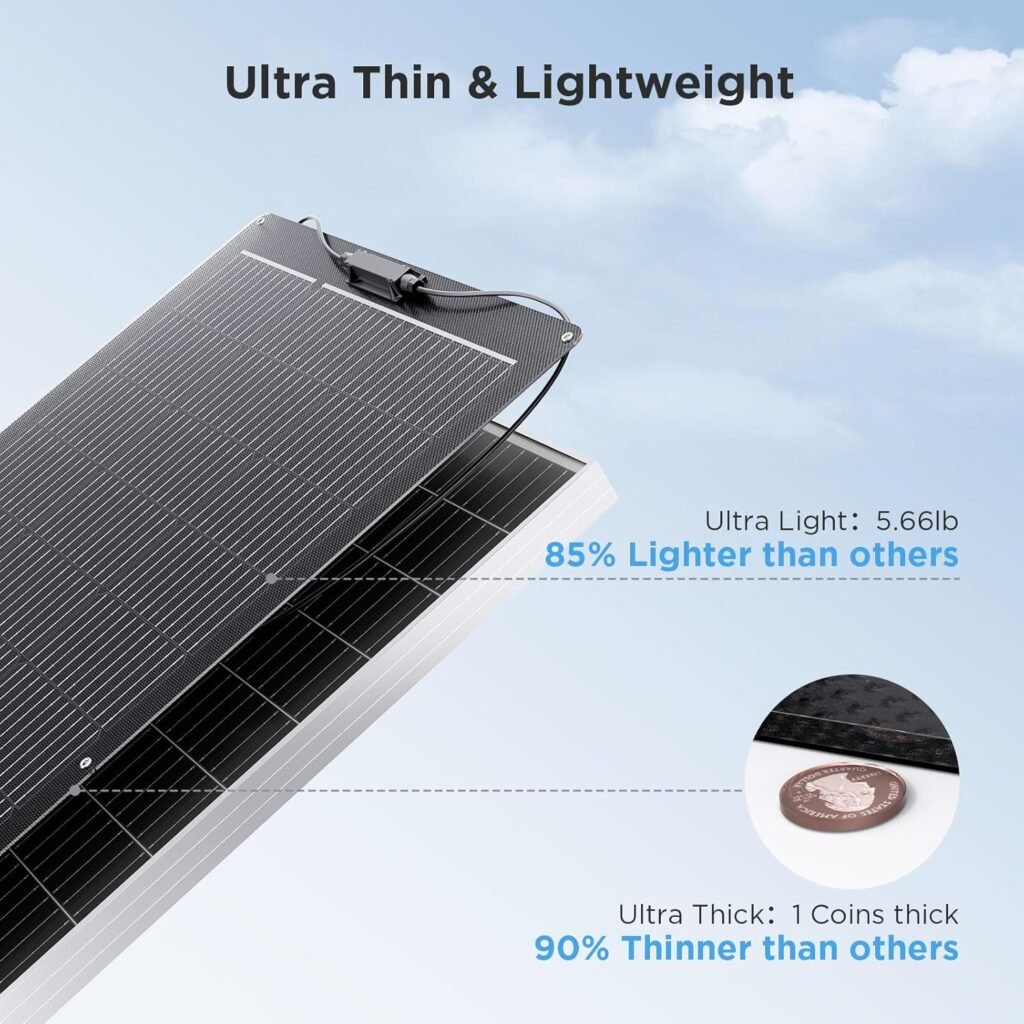

Flexibility and Weight

You can bend the panels to a maximum radius of about 500mm, which makes them suitable for mildly curved roofs on vans, campers, and some boats. Because they’re up to 85% lighter than equivalent rigid panels, you’ll find the physical handling, temporary placement, and long-term roof loading a lot easier to manage.

For installations where roof weight matters or where you want a low-profile solution, the reduction in bulk versus a framed glass panel can be a game-changer.

Power and Efficiency: 182 PERC & 11 Busbars

The calls on PERC (Passivated Emitter Rear Cell) technology mean better light capture and improved electrical performance in the same panel area. You’ll benefit from higher output efficiency—advertised up to 23%—thanks to the 182 PERC half-cut cells.

The 11 busbars help reduce series resistance and improve current collection, so under good conditions the panels should deliver close to their rated power. In partial-shade or non-ideal angles, multiple busbars and bypass diodes help limit drops in output and reduce hot-spot risk.

Weather Resistance and Durability

With IP68-rated waterproofing and bypass diodes, these panels are designed to keep working through rain, splashes and partial shading scenarios. The rated mechanical load resistance (5400 Pa snow, 2400 Pa wind) is impressive for a flexible panel.

This performance means you don’t need to worry about occasional heavy weather or snow sitting on the panel during travel stops—though you should still follow safe installation practices and inspect mounts after severe storms.

Performance in Real-World Conditions

You’ll see the best power production when the panels are mounted and oriented properly, but the PERC cells and ETFE face help preserve output in less-than-ideal conditions. Partly cloudy days and angled light will still produce usable current, and bypass diodes help keep the system generating through partial shading.

In morning and evening low-angle sun, the half-cut design and extra busbars tend to perform better than many older flex options, giving you a more consistent charge for your battery bank.

Installation and Mounting Options

You can install these panels using adhesive, specialized flexible-panel brackets, or a combination of clips and adhesive pads depending on whether you want a semi-permanent or removable setup. The light weight makes adhesive-only installations feasible, but you should follow manufacturer recommendations for surface prep and use marine-grade adhesives for boats.

If you plan a permanent roof mount, consider using low-profile fasteners or rivets with gasketed protection points, or mount them into a thin plywood substrate to spread loads. Always test adhesive bond strength and pay attention to thermal expansion, especially in high-heat climates.

Recommended Mounting Materials and Practices

You should clean and prime the surface before adhesion to ensure a solid bond and minimize bubbling or premature peel. Use sealant tape and a high-quality polyurethane or marine adhesive for long-term bonding.

Also plan for edge sealing to prevent water ingress and accommodate thermal cycling that occurs during frequent travel between hot days and cooler nights.

Wiring and Electrical Setup

You’ll want to wire the two 100W panels either in parallel (for 12V systems) or series/parallel depending on your charge controller and system voltage. Check the open-circuit voltage (Voc) and maximum power voltage (Vmp) of the panels and make sure they remain within the input range of your MPPT or PWM charge controller.

Use appropriately sized, UV-resistant cables and properly rated MC4 connectors or manufacturer-specified connectors, and install an inline fuse/circuit breaker between the panel output and the controller for safety. Proper grounding practices and flexible cable strain relief will improve both safety and longevity.

Recommended Controller and Wiring Specs

You should pair these panels with an MPPT charge controller for best efficiency, particularly if you plan to charge lithium batteries or run a 24V system. Sizing your cables to limit voltage drop (ideally under 2–3%) will help you get the most from the 200W output.

Compatibility (12V/24V Systems & Off-Grid Use)

These panels are designed to work with both 12V and 24V systems, giving you flexibility depending on whether you’re adding to a small camper battery bank or a larger off-grid setup. You can run them into a suitable MPPT controller and scale up the system by adding panels or integrating with existing arrays.

If you want to charge a 24V battery bank, wire appropriately and check the combined Voc to ensure it stays within the controller’s input limits.

Charging Performance: What to Expect

Under ideal sunshine, a combined 200W should produce around 10–12 amps into a 12V battery (depending on MPPT efficiency and actual operating voltage), though real-world average daily energy depends on sun hours, angle, and shading. Over a bright day you can expect several kWh-equivalents of energy, which is useful for running lights, fans, small appliances, and charging devices.

You’ll see dips in output when cloud cover or shading occurs, but the advanced cells, busbars, and bypass diodes are intended to minimize output loss and hotspot risk.

Maintenance and Care

You should inspect the panels periodically for edge lift, connector condition, and surface cleanliness. Thanks to ETFE’s self-cleaning tendencies, moderate rain will remove much of the dirt, but in dusty or salty environments a gentle rinse with fresh water is a good idea.

Avoid abrasive cleaning techniques and don’t apply harsh solvents. Check connectors for corrosion and reseal any mechanical fasteners or adhesive edges if you find signs of weathering.

Seasonal Checklist

You should clear snow and large debris, verify adhesive bonds after long winter storage, and check the integrity of any fixed mounts before winter travel. Replace or reseal any compromised areas to prevent moisture ingress.

Pros and Cons

You’ll appreciate a lot of strengths with these panels, but no product is perfect. Here’s a balanced look to help you weigh the trade-offs.

Pros:

• High efficiency (up to 23%) from 182 PERC half-cut cells.
• ETFE surface increases longevity and resists abrasion.
• Very lightweight and flexible to 500 mm radius for curved roofs.
• IP68 waterproofing and strong mechanical load tolerances.
• 11 busbars reduce internal resistance and improve shade tolerance.
• Designed to last up to 25 years with Grade A+ materials.

Cons:

• Flexible panels generally have slightly lower panel-level efficiency per area than top-tier framed glass modules.
• Adhesive mounts can be less secure long-term than framed panel mounts without careful installation.
• Cosmetic blemishes from shipping may occur (noted by manufacturer) and must be inspected on delivery.
• Flex panels can heat differently than glass, which affects performance and mounting considerations.

You should weigh these pros and cons based on how you plan to use the panels on your vehicle or boat.

Comparison with Rigid Panels and Other Flex Panels

Compared to framed glass panels, you’ll get much less weight and more ability to conform to curved surfaces, but you may trade off a little overall panel durability under long-term hard mechanical impact. Compared to older flex panels, the Callsun units use better cell tech and ETFE covers, so they’re a step up in both efficiency and longevity.

If roof weight, curve, or concealment are your priorities, these flexible panels often make more sense. If you need the absolute best long-term output per square meter and rigid roof mounting is possible, framed glass modules might still be preferable.

Who This Panel Is Best For

You’ll find this kit ideal if you live or travel in an RV, campervan, or boat and want a low-profile, lightweight solar solution that can adapt to curved roofs. It’s also good for temporary installations, rooftop cargo setups, and situations where you need a portable, low-weight option.

If you prioritize ease of installation, want reduced roof loading, or plan to add panels in stages, this kit is a practical choice.

Potential Limitations and When to Avoid

You should avoid these panels if you’ll be mounting them where repeated hard impacts or heavy abrasion are likely, or if you need the absolute highest per-area peak efficiency possible in a rigid module. If you anticipate frequent collisions with tree branches or need a walkable roof, a framed, tempered glass panel might be safer.

Also, check the product dimensions against your roof area and cable routing constraints before purchasing to ensure a good fit.

Warranty, Support, and Longevity

Callsun emphasizes long-term use with Grade A+ material selection and offers technical support and customer service, promising extended service life (up to 25 years under right use). You should read the warranty terms carefully for coverage specifics, especially around adhesive installations and shipping cosmetic issues.

Support availability is helpful if you need wiring guidance or troubleshooting during installation.

Unboxing and Initial Impressions

When you receive the kit, inspect the packaging because the panels are large and vulnerable to edge damage. You should check for visible cosmetic imperfections and test each panel’s open-circuit voltage and polarity before final installation.

The first impression will likely be the lightweight feel and flexibility—noticeably different from a framed glass module—plus the sleek black aesthetic that sits flat against most vehicle roofs.

Tips for Maximizing Output

You should aim to mount panels at the best practical angle toward the sun, minimize shading from vents and antennas, and use an MPPT controller for better harvest in varied conditions. Keep connectors tight and use proper cable sizing to reduce voltage drop.

Consider adding a small tilt mount for occasional angled positioning when parked in long-term sunny locations, and clean the panels occasionally in dusty or salty environments to preserve output.

Safety Considerations

You should always isolate the panel array when wiring and follow electrical safety best practices, including fusing, proper grounding, and using the correct wire gauge. When installing on a vehicle, take fall precautions and avoid stepping on the panels.

If you’re unsure about wiring or mounting to a particular roof material, consult a professional to prevent leaks, structural damage, or electrical hazards.

Final Verdict

You’ll get a compelling, practical solar kit for off-grid living if you choose the Callsun 200W flexible panels. They offer high-efficiency 182 PERC cells, a tough ETFE surface, and a lightweight flexible form factor that fits curved roofs and mobile setups particularly well. For most RV and campervan users who need an unobtrusive, lightweight, and reasonably durable array, this kit will likely meet your needs.

If you prioritize the ultimate in ruggedness and per-area efficiency offered by framed glass modules, those remain a strong alternative. But for people who value weight savings, conformability, and a modern flexible build—especially in marine or lightweight-roof applications—these panels are a strong choice.

Frequently Asked Questions

You’ll likely have a few questions before you buy. Below are common queries and clear, practical answers to help you decide and plan your installation.

Can these panels be connected directly to my battery?

You should never connect panels directly to a battery without a charge controller. Use an MPPT or PWM controller sized for your 200W array to manage charging, voltage regulation and battery health.

You’ll also want a proper inline fuse or breaker and wiring sized to handle the max current safely.

How do I mount the panels to a curved roof?

You should use flexible-panel adhesive compatible with roofing materials, or low-profile brackets designed for flex panels. Clean and prime the surface first, and consider mechanical backup fasteners or edge sealing if you plan a permanent installation.

Monitoring the adhesive bond after the first season is a good practice.

What type of controller is recommended?

You should use an MPPT charge controller for best efficiency, particularly in varied weather or when charging lithium batteries. An MPPT controller will squeeze more usable energy from the 200W array than a PWM controller.

Match the controller’s input voltage limit and current rating to the panels’ Voc and the expected amperage.

How do the bypass diodes help performance?

Bypass diodes allow current to flow around shaded or underperforming sections of the panel so you don’t lose the output of the entire panel string. You’ll notice reduced power loss and less risk of hotspots when the panels have these diodes.

They’re particularly valuable in real-world conditions with partial shading from vents, antennas, or nearby trees.

Are these panels repairable if damaged?

Minor edge or connector issues can sometimes be repaired, but significant cell or substrate damage is usually not reparable in the field. You should inspect panels regularly and handle them with care during installation and transport.

Contact Callsun support for guidance if damage occurs—warranty and support can cover defects under specified conditions.

Will the black color cause overheating?

You should expect some temperature-related efficiency drop in very hot conditions, as with most solar modules. However, the ETFE surface helps with heat tolerance and impacts less on performance than it might visually suggest.

Good airflow under and around the panel and shade avoidance will help mitigate heat-related losses.

How should I size cables for the 200W kit?

You should calculate maximum current and voltage drop to choose an appropriate wire gauge—typically 10 AWG to 12 AWG for short runs on a 12V setup, depending on run length and controller location. Use an online voltage-drop calculator to confirm exact sizing for your installation.

Always use marine or UV-resistant cable for outdoor, rooftop, or boat installations.

Can I stack these with other panels later?

You should be able to expand your array provided you keep system voltage and controller limits in mind. Matching panel types, orientations, and similar electrical characteristics helps avoid mismatch and reduces losses.

If you plan to expand significantly, consult your charge controller specs and consider future-proofing your wiring and controller size.

Installation Checklist Before You Start

You should follow a short checklist to reduce installation problems and ensure peak performance.

• Verify roof area and curvature fits the panels’ dimensions.
• Inspect panels for transit damage on arrival.
• Plan cable routing to the controller with minimal distance.
• Prepare surface with cleaning and priming for adhesion.
• Select mounting approach (adhesive, clips, or semi-permanent brackets).
• Use appropriate wire gauge, MC4-type connectors or specified connectors, and inline fusing.
• Test Voc and polarity before final adhesion.
• Check for shading at different times of day and adjust placement accordingly.

You’ll save time and avoid mistakes by double-checking these items before you start.

Closing Notes

If you’re customizing an RV, boat, or campervan and need a high-efficiency, lightweight solar solution that conforms to curved surfaces, the Callsun 200W flexible solar panel kit is worth a serious look. You’ll gain practical advantages in weight, form factor, and modern cell technology while keeping an eye on proper installation, wiring practice, and seasonal maintenance to get the best long-term performance.

If you want, tell me about your vehicle’s roof dimensions, battery setup, and typical power needs and I’ll help you plan a wiring layout and estimate daily energy production that fits your lifestyle.
