Joinfworld RV Power Outlet Panel review

Looking for a robust temporary power solution for your RV, trailer, or job site?

Product Overview

You’re looking at the “Temporary Power Outlet Panel Weatherproof, Thicker Prewired RV Electrical Panel with UL Listed 20, 30, 50 Amp Receptacle Outlet Box Installed for Hookup Camper Travel Trailer Motorhome” — a mouthful of a name, but a pretty straightforward product. It’s a heavy-duty, weatherproof, prewired RV power outlet panel intended to make temporary power hookup simpler and safer for outdoor applications like RV parks, construction sites, and events.

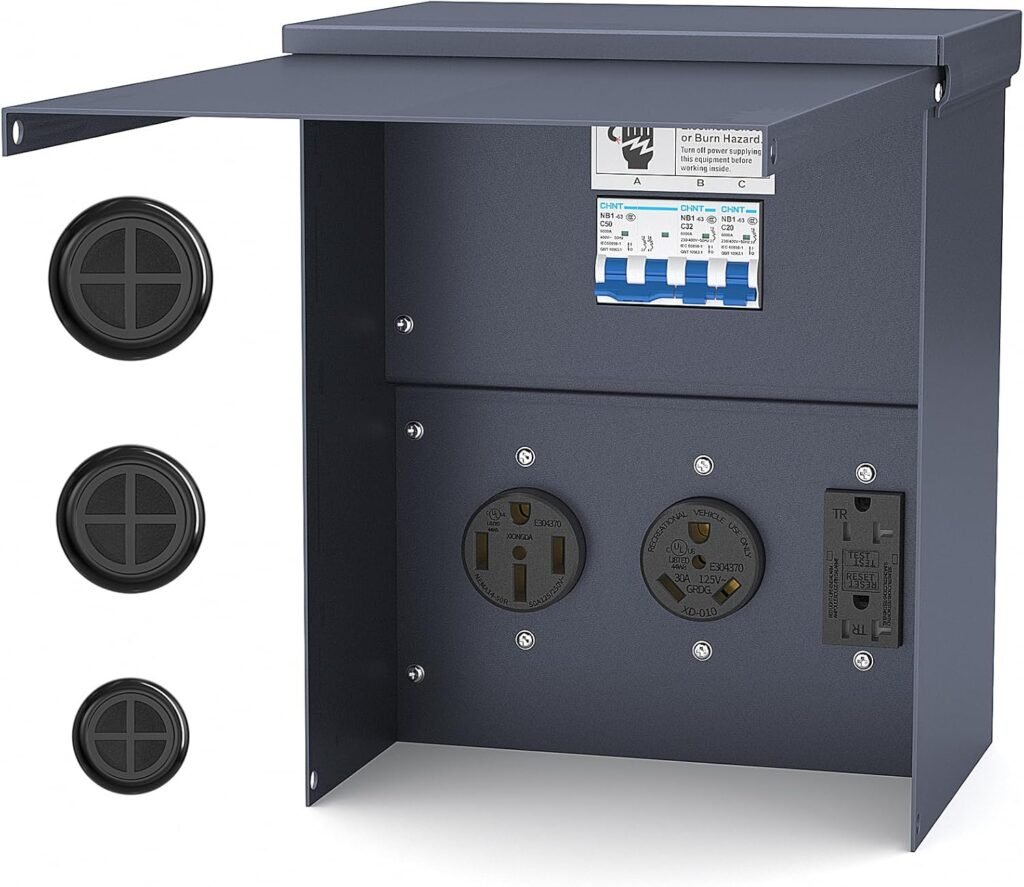

What it is

This unit is a compact, metal outlet box that comes prewired with three UL Listed receptacles: 20 amp, 30 amp, and 50 amp. Each outlet has its own circuit breaker protection mounted inside the box. The box is designed for temporary service use — you mount it, connect the in/out lines, and you’ve got a weather-resistant means of distributing power.

Key specifications at a glance

You’ll want the quick facts before digging into details. This table breaks down the most useful spec points so you can check compatibility with your gear and decide whether it fits your needs.

Design and Build Quality

You’ll notice the unit feels sturdy when you handle it. The designers intended a tough enclosure that takes the knocks of outdoor job sites and campground conditions.

Materials and durability

The box is made of cold-rolled steel, which gives it a solid, rigid build compared with thin sheet metal alternatives. It has a full spray coating and dual rust-resistant treatments to help prevent corrosion — important if you leave it outdoors for extended periods. That thicker construction also helps the lid and latches align properly so the cover closes securely while cables are connected.

Weatherproofing and safety features

The enclosure is designed to be weather-resistant: it offers protection against dust, rain spray, UV exposure, and lightning-related transient concerns (not a substitute for proper grounding and surge protection). The cover can close with the cords in place thanks to the larger interior space and lid design, and ventilation holes on each side help reduce internal temperatures. Those ventilation features aim to reduce the chance of overheating, but you should still avoid prolonged, heavy loads beyond the intended capacity.

Electrical Features

The panel’s electrical layout is intentionally simple and practical. If you’re juggling different shore power standards or run temporary supplies on a site, having multiple amp-rated receptacles in one box reduces the need to swap cords or adaptors frequently.

Outlets and breakers

You get three UL Listed outlets: 20A (usually NEMA 5-20), 30A (common RV 30A), and 50A (common RV 50A). Each receptacle is individually protected by its own circuit breaker inside the box. That means if a specific circuit trips, the other outlets remain live. The UL Listing is important — it indicates the outlets meet specific safety testing standards you can rely on.

Prewired convenience

One of the big selling points is that the internal wiring is pre-connected. You’ll only need to connect the two exposed service leads to your temporary feed (inbound power) and possibly a ground or neutral termination depending on your installation. This setup saves you time, reduces wiring mistakes, and is helpful if you’re not an electrician. Still, you should know enough about power connections or consult a licensed electrician for permanent setups or if you have any doubts.

Cooling and heat management

The panel includes porous ventilation on both sides to assist heat dissipation. That’s a smart addition because multiple heavy-load outlets in a small metal box can trap heat. The vents let heat escape while the metal enclosure spreads heat away from hotspots. Even with ventilation, you should follow the load limits and avoid stacking multiple high-draw appliances on a single outlet simultaneously.

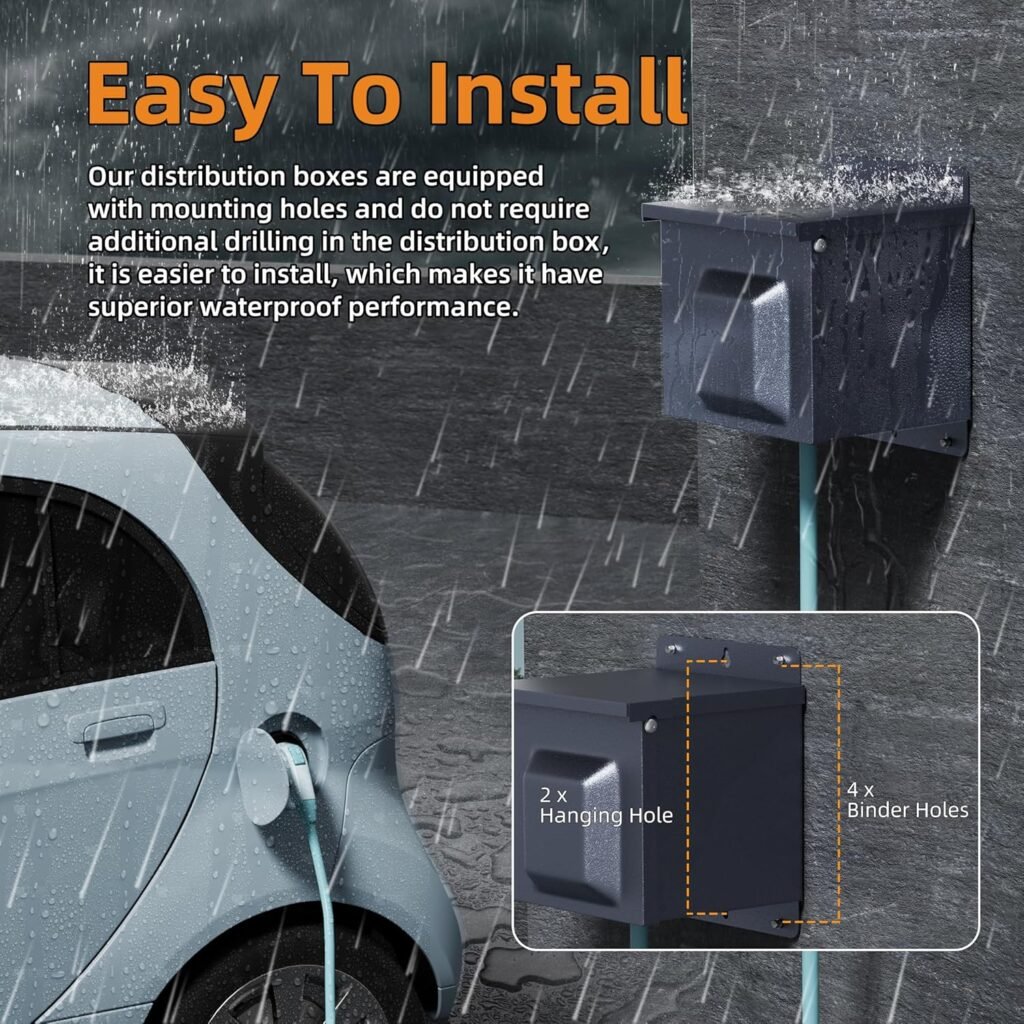

Installation and Setup

You’ll find installation relatively straightforward, but there are a few things to prepare beforehand to ensure safe, code-compliant operation.

What you need to connect

Before you start, make sure you have:

• Properly rated feeder cable and connectors for the incoming power (matching the local codes and the panel’s expected use).
• Correct tools: wire strippers, screwdrivers, torque wrench for terminal screws if needed.
• A mounting surface or post that can support the box and keep it elevated off the ground to avoid standing water.
• Knowledge of grounding requirements and local electrical code — a licensed electrician should be consulted if you’re unsure.

Because the internal wiring is prewired, you’ll be connecting the incoming power leads rather than wiring each outlet individually. That simplifies the process but doesn’t remove the need for safe, correct connections at the feed.

Ease of installation

The larger inner space and prewired design make setup quick for temporary service. You’ll appreciate that the cover can still close while cords are connected — that stops rain and dust from getting inside. If you’re mounting it to a wooden post or building, use corrosion-resistant fasteners that match the weatherproofing theme. For many RVers and contractors, the unit will go from box to use within minutes once the power feed is in place.

Performance in Real Use

It’s one thing to read specs; it’s another to see how the panel behaves when you’re actually using it. Think of the product as a practical, no-frills workhorse meant to make temporary power safer and more convenient.

For RVs and campers

If you travel with a range of hookups — maybe you sometimes get a 30A pedestal and sometimes a 50A — having 20A/30A/50A receptacles in one enclosure is convenient. You’ll find it useful in campgrounds, when connecting to generator outputs, or when you need to provide a temporary hookup at the campsite while your RV is being serviced. The breakers give you quick protection if you accidentally overload a circuit.

On construction sites and events

On a site, you’ll appreciate the weather protection and the variety of receptacles for tools and equipment. It simplifies distribution when multiple teams need different amps. For short-term events, it’s handy for powering food trucks, staging equipment, or temporary lighting without running multiple separate dedicated boxes.

Pros and Cons

You’ll want to balance the strengths and weaknesses before deciding to buy. Here’s a clear breakdown to help you weigh your decision.

Pros

• Prewired internals save time and reduce wiring mistakes.
• Heavy-duty cold-rolled steel construction improves durability on-site.
• UL Listed outlets and individual circuit breakers improve safety and compliance.
• Weatherproof finish and UV/dust resistance for outdoor use.
• Ventilation design helps manage heat in the enclosure.
• Multiple amp receptacles (20/30/50) increase flexibility for different devices.

Cons

• Not intended as a permanent distribution panel for home; it’s temporary service equipment.
• You’ll still need properly rated feeder cables and connectors; prewiring doesn’t eliminate the need for correct hookups.
• Ventilation ports help but are not a substitute for careful load management; heavy continuous loads can still cause heat buildup.
• If you need GFCI protection for shore power or specific installed locations, you’ll need to confirm local code requirements and possibly add extra protection.

Comparison with Alternatives

You should know how this panel stands against other options on the market so you can pick what’s best for your use cases.

Standalone outlet boxes vs integrated panels

Standalone single-outlet boxes are lighter, cheaper, and more specialized, but they require you to carry multiple units or use adaptors. This integrated panel gives you three common RV and service receptacles in one compact enclosure, which reduces clutter and improves convenience. Compared to dedicated permanent distribution panels, this model focuses on portability and weather resistance rather than expansion capacity and integration into a building’s fixed power system.

What to look for when buying temporary power panels

When you shop, check:

• UL listings and compliance details for outlets and internal components.
• Material thickness and finish to resist rust and weathering.
• Prewired vs field-wired: prewired saves time but always confirm wire gauge and conductor type.
• Ventilation and thermal design.
• Ease of mounting and cover sealing while cords are connected.
• Circuit protection layout (broken out by outlet or shared).

Maintenance and Care

You’ll get the longest service life if you inspect and maintain the panel regularly.

Cleaning and rust prevention

Rinse away road grime or salt spray periodically with fresh water and mild detergent if exposed to corrosive elements. Inspect the sprayed finish for chips, and touch up as needed with appropriate rust-inhibiting paint. Use stainless or galvanized fasteners when mounting to avoid corrosion at attachment points.

Seasonal storage and inspection

If you’ll store the panel indoors in the off-season, dry it thoroughly and check seals and gaskets for cracking. Inspect internal breakers for corrosion or discoloration, and toggle each breaker occasionally to keep contacts free-moving. Replace any degraded seals to keep weatherproofing effective.

Safety Tips and Best Practices

You should treat any temporary power equipment with respect: power is dangerous if mishandled. These tips keep you safer and extend the life of the panel.

Grounding and circuit protection

Always ensure the panel is properly grounded and bonded to the power source according to local codes. While the panel has internal breakers for overload protection, you may need additional GFCI protection for shore power where required by code — especially in fixtures serving RVs, outdoor receptacles, or temporary installations near water or damp areas.

Avoiding overload and heat issues

Do not plug multiple high-draw appliances into the same outlet or into adapters that defeat proper amp matching. Monitor loads, and avoid continuous operation at or near maximum capacity. Place the box in a shaded, ventilated location to reduce external heating, and do not block the ventilation ports.

Troubleshooting Common Issues

You’ll find most issues are simple to diagnose and fix if you follow safe procedures.

• No power to the box: Check the incoming feed, main breaker or upstream disconnect, and tighten any loose feed connections. Confirm the feeder cable is intact.
• Outlet trips repeatedly: Identify the load causing the trip, unplug, and test the outlet with a smaller load. If a breaker trips at low loads, consider replacing the breaker or checking for damaged connections.
• Moisture inside the enclosure: Remove power, open the cover, dry thoroughly, and inspect seals. Replace degraded gasket material and make sure cover latches are securing properly.
• Corroded terminals: Power down, clean with appropriate contact cleaner and a wire brush if necessary, then apply anti-corrosion treatment and tighten connections.

If you’re not confident working on live electrical systems, consult a licensed electrician.

Frequently Asked Questions

You’ll probably have a few common questions before purchasing or using this panel. Here are answers to help you move forward.

Q: Is this panel suitable for permanent installation? A: It’s designed for temporary service and outdoor use. For permanent distribution, follow local code and consider a panel designed for permanent installation with licensed electrician involvement.

Q: Do the outlets include surge protection? A: The panel includes individual circuit breakers for overload protection but does not provide integrated surge suppression. Add external surge protectors if you need transient voltage protection.

Q: Can the cover close with cords connected? A: Yes — the interior space and design allow the cover to close while cords are connected, helping maintain weather protection.

Q: Does it include GFCI protection? A: The product includes breakers for each outlet, but GFCI protection isn’t specified as part of the unit. Check local requirements and add GFCI protection if required.

Q: What does “prewired” mean here? A: The internal wiring between the incoming feed and the outlets is already connected. You’ll only need to connect the incoming feeder lines to the provided terminals or service leads.

Q: Are the receptacles standard RV connectors? A: The outlets are UL Listed 20A, 30A, and 50A – the common types used in RV and temporary power applications. Verify your cords match the receptacle types.

Q: How weatherproof is the box? A: The enclosure is designed to be weather-resistant with sprayed coating, rust resistance, and sealed cover. It’s suitable for outdoor temporary service but not for full submersion.

Q: Do I need an electrician to install it? A: For temporary hookup you might do the connections if you’re experienced with electrical systems, but for permanent or complex setups you should hire a licensed electrician to ensure code compliance.

Purchase Considerations and Use Cases

You should measure twice and plan your power demands before buying. This panel is particularly useful if you:

• Rent or own an RV and frequently switch between different campground pedestals.
• Run temporary power on construction sites where multiple amp ratings are needed.
• Organize outdoor events where multiple vendors require different hookups.
• Need a compact, durable solution that won’t be damaged easily by outdoor conditions.

It’s not the best fit if you need integrated surge suppression, centralized monitoring, or a permanent home distribution panel.

Final Recommendation

If you want a rugged, flexible, and convenient temporary power distribution option that saves setup time and reduces wiring complexity, this prewired weatherproof outlet panel is a strong choice. You’ll like the heavy-duty steel construction, UL Listed receptacles, and the convenience of prewired internals. Just be sure you pair it with properly rated feeder cables, observe load limits, and follow local electrical codes — and call an electrician if you’re unsure about any aspect of the hookup.

You’ll get a durable, weather-resistant, and practical temporary power solution for RVs, campsites, and work sites, and it will likely simplify your field power needs while improving safety compared with ad-hoc adapter setups.
